VENOM 60 HE PCB

Compatible with VELLA 60% KEYBOARD

Product Features

- Web-based firmware (https://venom.how/)
- RISC-V32 architecture applied
- Supports 8KHz polling rate / 14KHz scan rate per key
- 0.16ms latency
- Custom PCB standard specifications
- Daughterboard and JST connector included

Product Malfunction Check Points

- Use USB 2.0 high-speed or higher A TO C cable
- USB hub not recommended
- Use Chrome browser
- Initialize USB driver
- Firmware upgrade or factory reset

Compatible Switches

- RAPTOR HE
- RAW HE
- Lucifer HE
- GATERON KS-20 / KS-20T, etc.
- N-pole switch, 1600gs or less at bottom magnetic force

Compatible Stabilizers

- PCB mounted

Custom Keyboard Assembly Requirements

- VENOM HE PCB
- HE compatible reinforcement plate
- HE compatible switches
- Compatible housing
- PCB mounted Stabilizer

PCBs

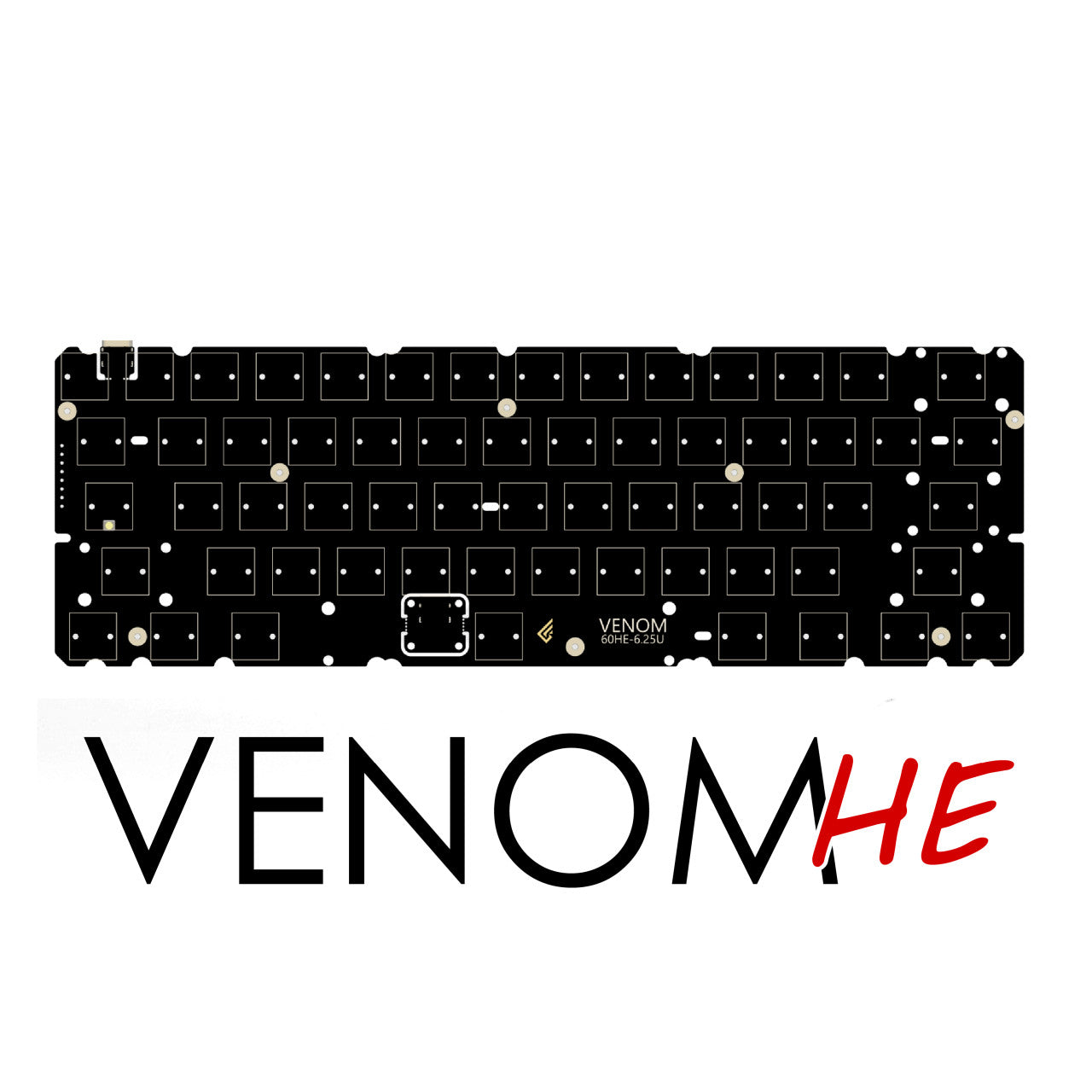

Venom HE 60% 6.25U PCB
Type : Hall effect
Material : FR4
Thickness : 1.6mm

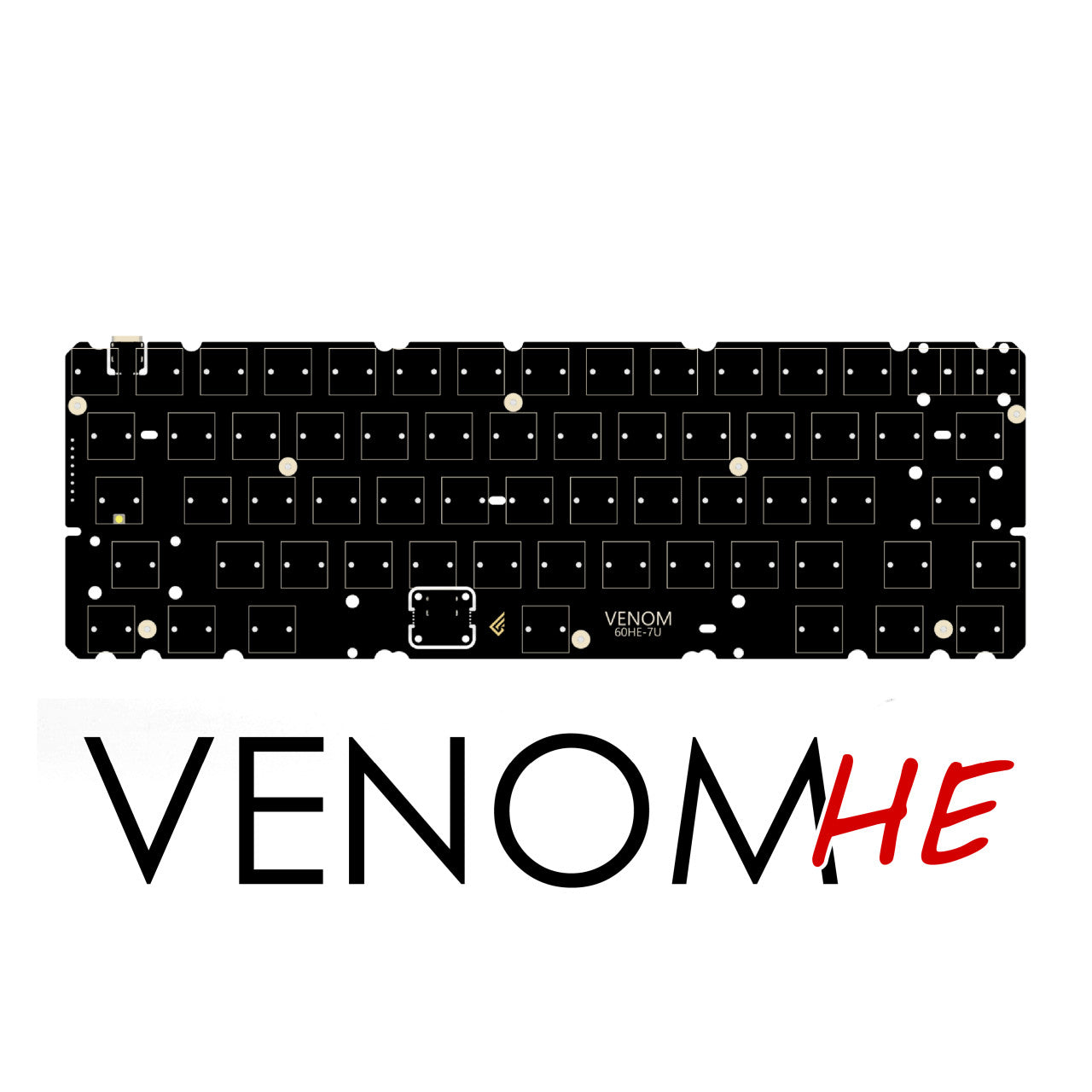

Venom HE 60% 7U PCB (Tsangan Layout)
Type : Hall effect
Material : FR4
Thickness : 1.6mm

Plates

GH60 Compatible (Tray and Oring mount)
Material : Aluminium, FR-4, CFRP, Copper
Thickness : 1.5mm

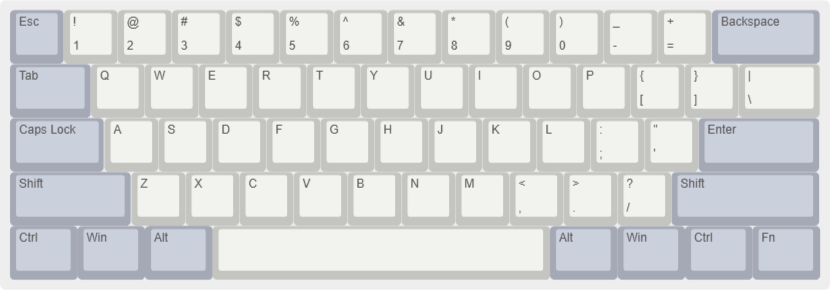

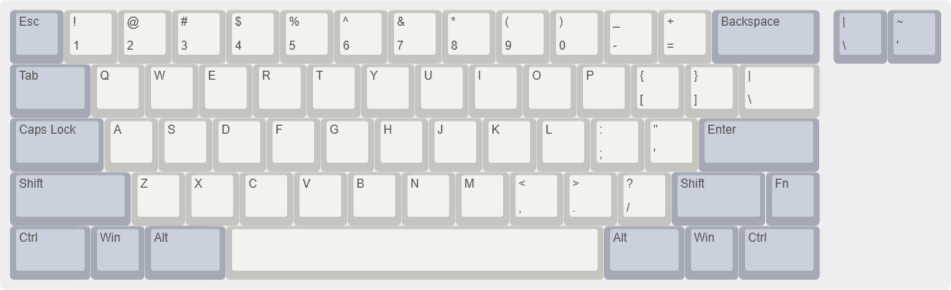

Layout : 6.25U / 7U

FROG MINI Compatible (Tadpole mount)
Material : Aluminium, FR-4
Thickness : 1.5mm
Layout : 6.25U / 7U

Foams

Venom HE Foam Set
Plate foam (3.5mm)
EPT Case Foam (3.0mm)

Compatible Switches
GEON Raw HE Switch
GEON Raptor HE Gaming Switch

Keep in mind
PCB does not include a JST cable and screws.
Plates include screws compatible with Venom PCBs.

All products are made in the size of GH60, which is the standard in the custom keyboard sector.
Before you start assembling the PCB, please carry out a PCB test and check if all keys function.
Before assembling the screws, remove the yellow tape on the stand-offs of PCBs.
Whether or not to use foam sets is optional.
To assemble the PCB and the plate, you must use all 8 screws.
After removing the C-type port once, you cannot put it on again.
Remove the daughter board installed above the arrow keys before usage, since electricity may go through.
Daughter board and C-type ports are made of FR-4, which means you must use a nipper. If you use tools made for other uses such as scissors, the product may be damaged.

For JST cables, you need to use a cable with the same pin layout on both ends.

Manufacturing country

Made in China
- Venom 60 HE PCB 6.25u
- Venom 60 HE PCB 7u
