RF-8X Extras & Add-ons [Group Buy]

All Plates are offered in 1.2mm Stainless Steel:

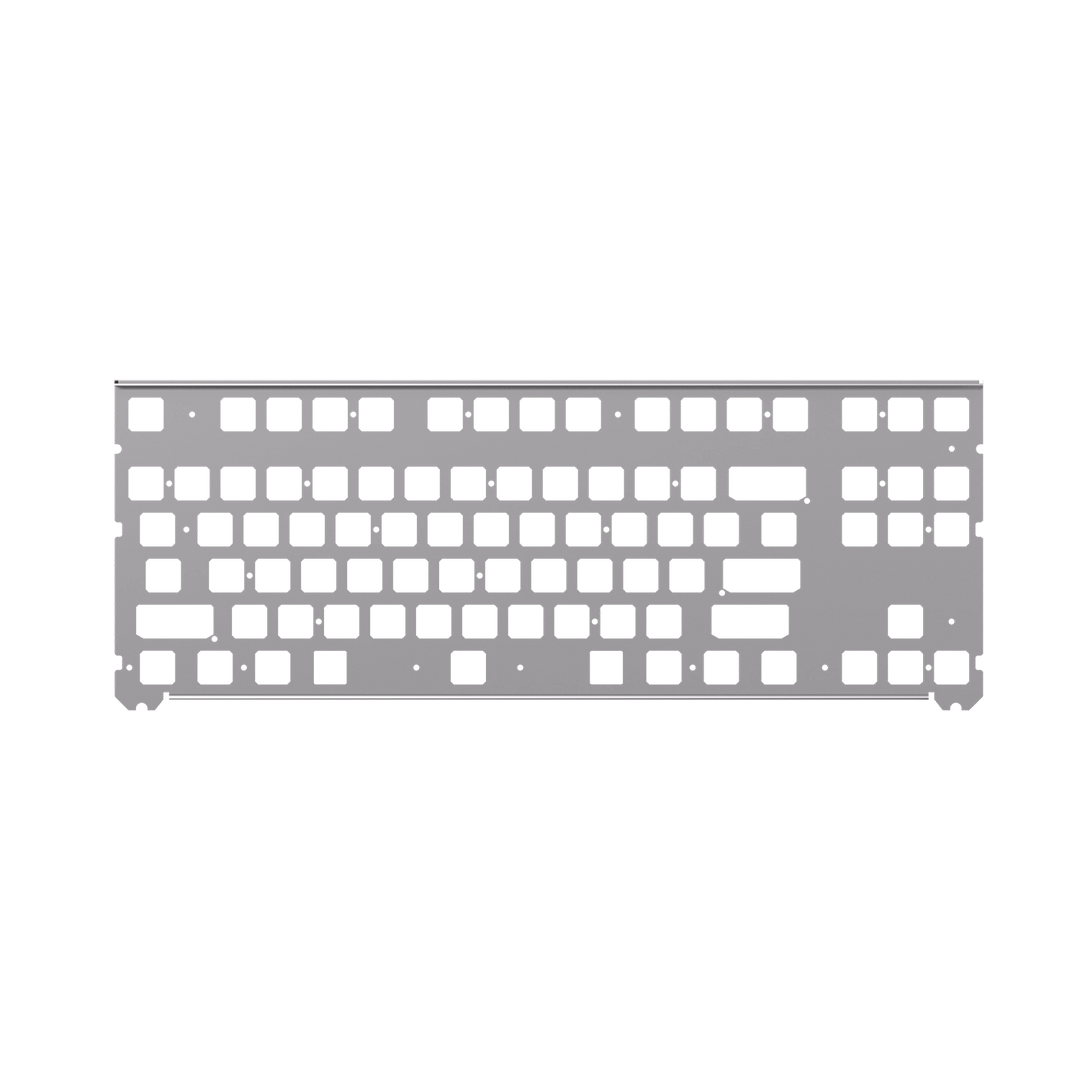

R1-86u Plate:
ANSI TKL layout
Support for 7u spacebar with 7u stabilizer spacing
Bottom row is 1.5u + 1u + 1.5u + 7u + 1.5u + 1u + 1.5u
Compatible with OEM Realforce R1 86u PCB and Cipulot R1 8-9Xu PCB
Includes M2.5 x 8mm low profile hex screws
Dimension: 360 x 140 x 8mm
Weight: 300g

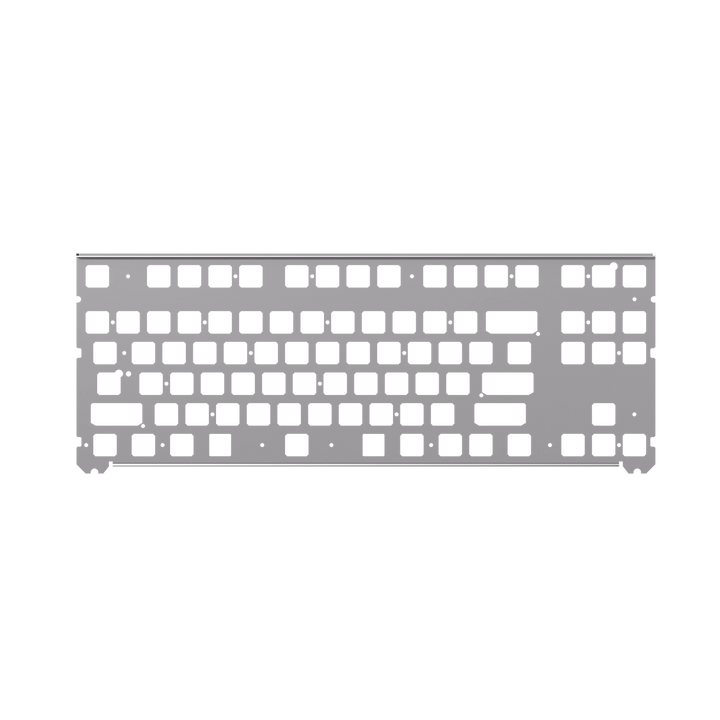

R1-87u Plate:
ANSI TKL layout
Support for 6u spacebar with 6u stabilizer spacing
Bottom row is 1.5u + 1u + 1.5u + 6u + 1.5u + 1u + 1u + 1.5u
Compatible with OEM Realforce R1 87u PCB and Cipulot R1 8-9Xu PCB
Includes M2.5 x 8mm low profile hex screws
Dimension: 360 x 140 x 8mm
Weight: 300g

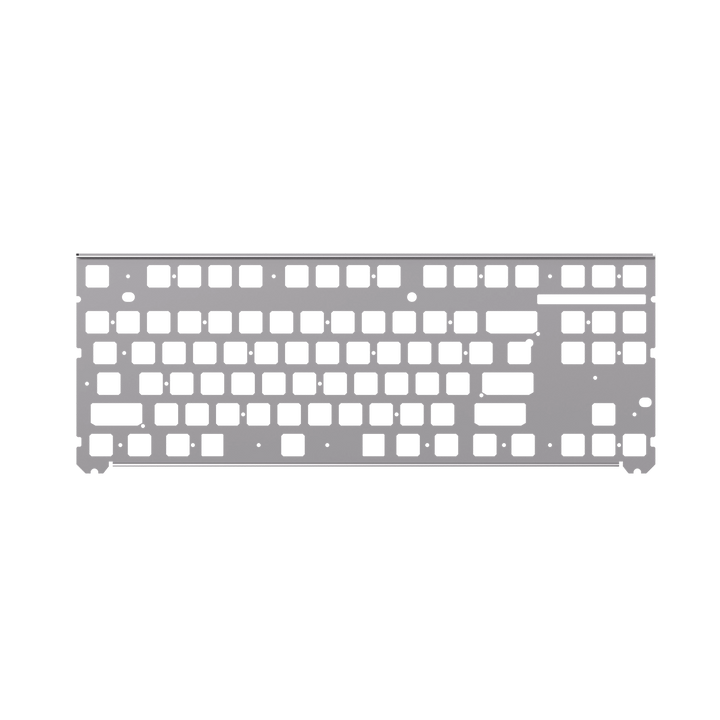

Modified R2/R3S Plate:
ANSI TKL Layout
Compatible with OEM Realforce R2/R3S ANSI TKL PCB and WK case ONLY
NOT compatible with Cipulot R1 8-9Xu PCB
Bottom row is 1.25u + 1.25u + 1.25u + 6.25u + 1.25u + 1.25u + 1.25u + 1.25u
Dimension: 360 x 140 x 8mm
Weight: 300g

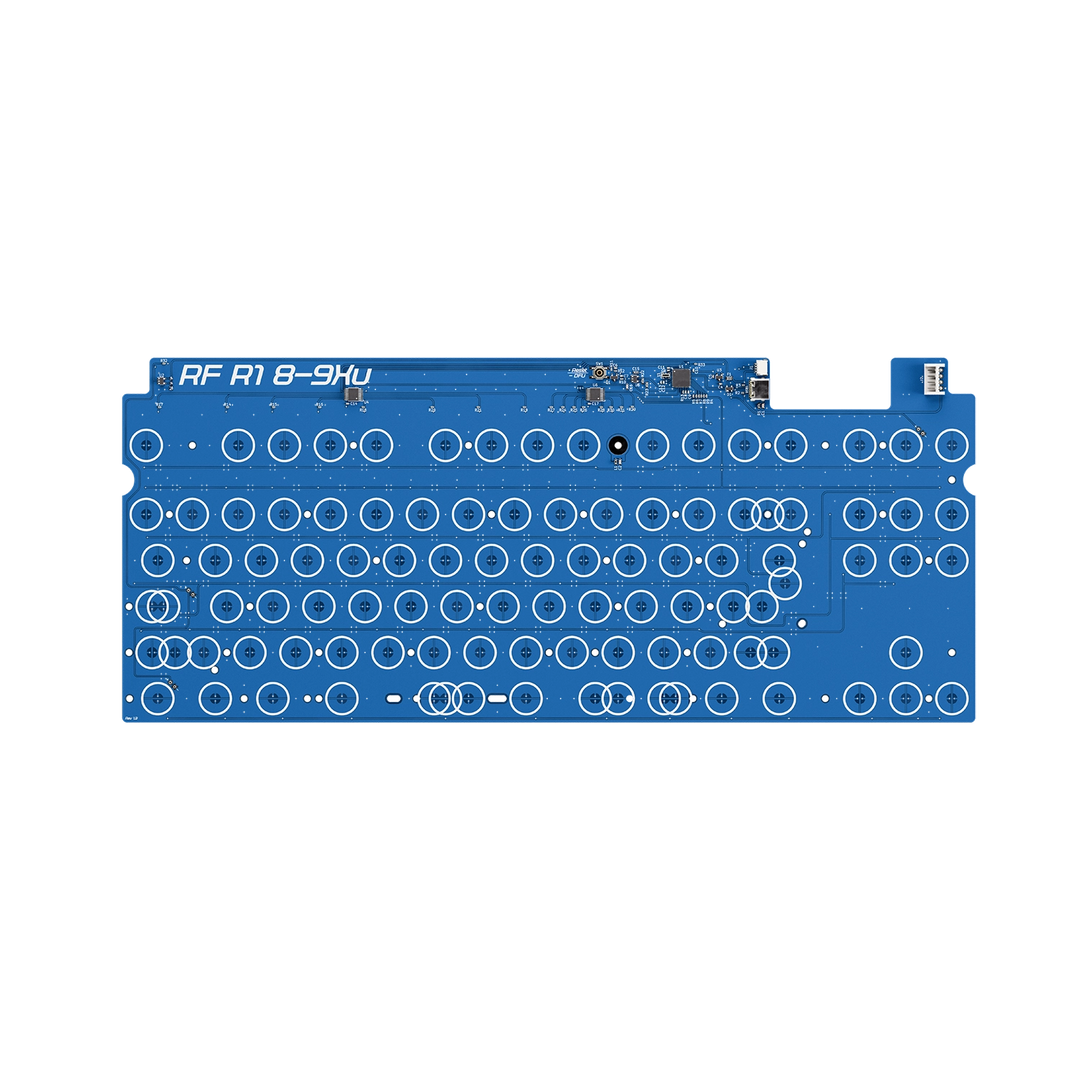

RF-8X PCB
Support for ANSI, ISO, and JIS layouts similar to 86u, 87u, 88u, and 89u
Internal support for JST cable, USB-C cable, and OEM JST EH 2.5 4-Pin connector
VIA support

RF-8X Accessories Pack
Case screws, DB, JST cables, and rubber feet required for the build.
