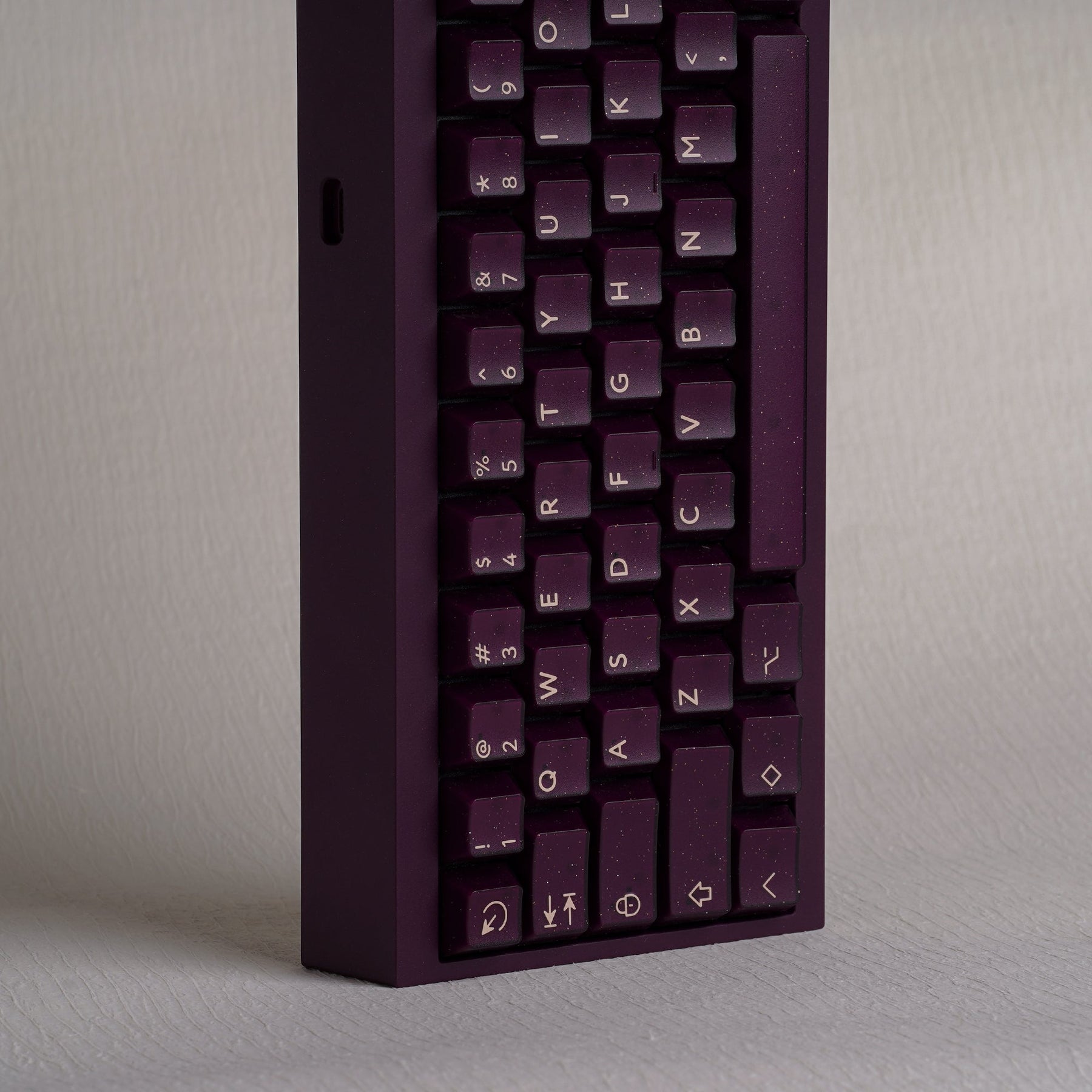

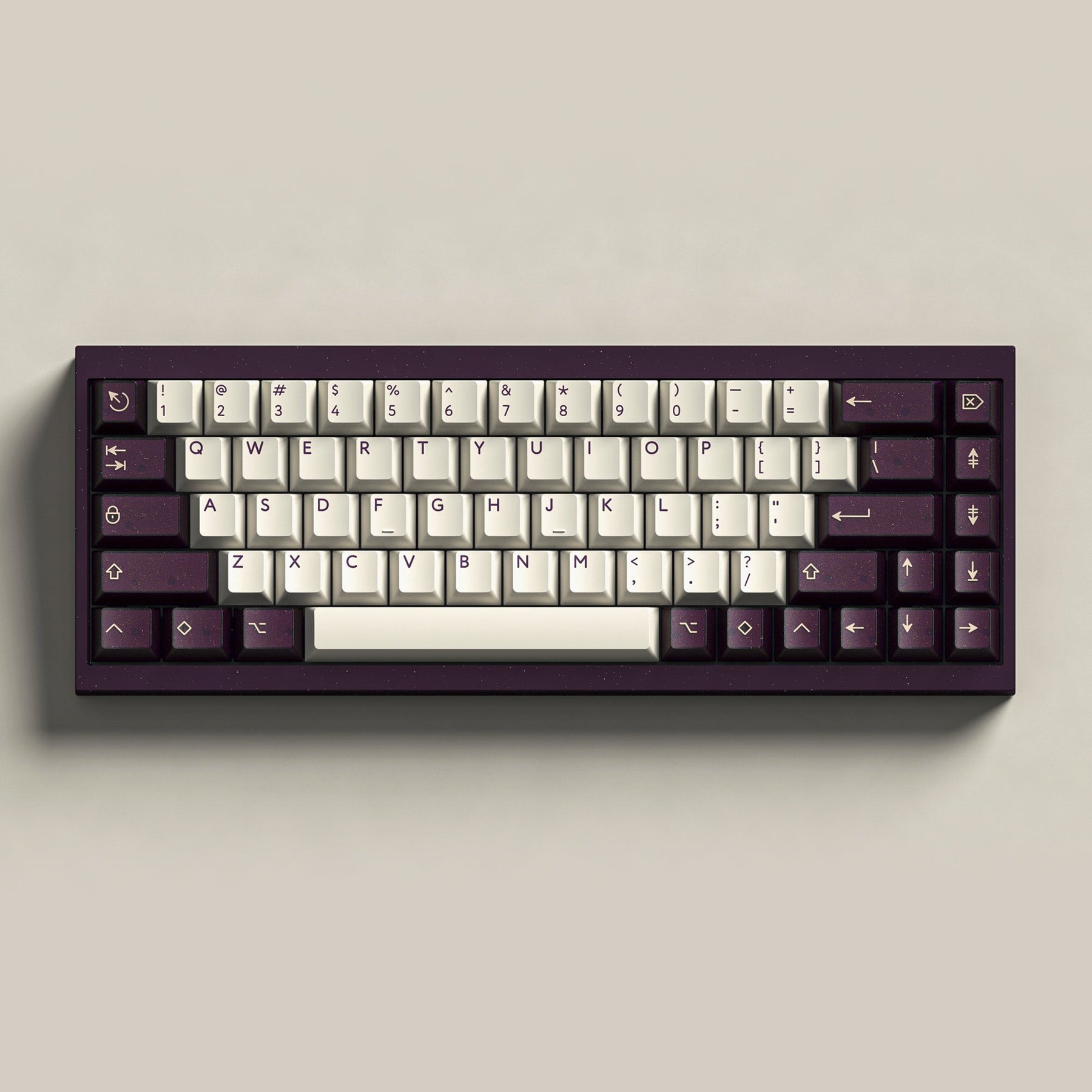

KBDFans Tofu65 2.0 x Vior Keyboard Kit

This item is IN-STOCK and ready to ship.

The KBDfans Tofu65 2.0 x Vior Keyboard Kit

Specifications:

• Layout: 65%

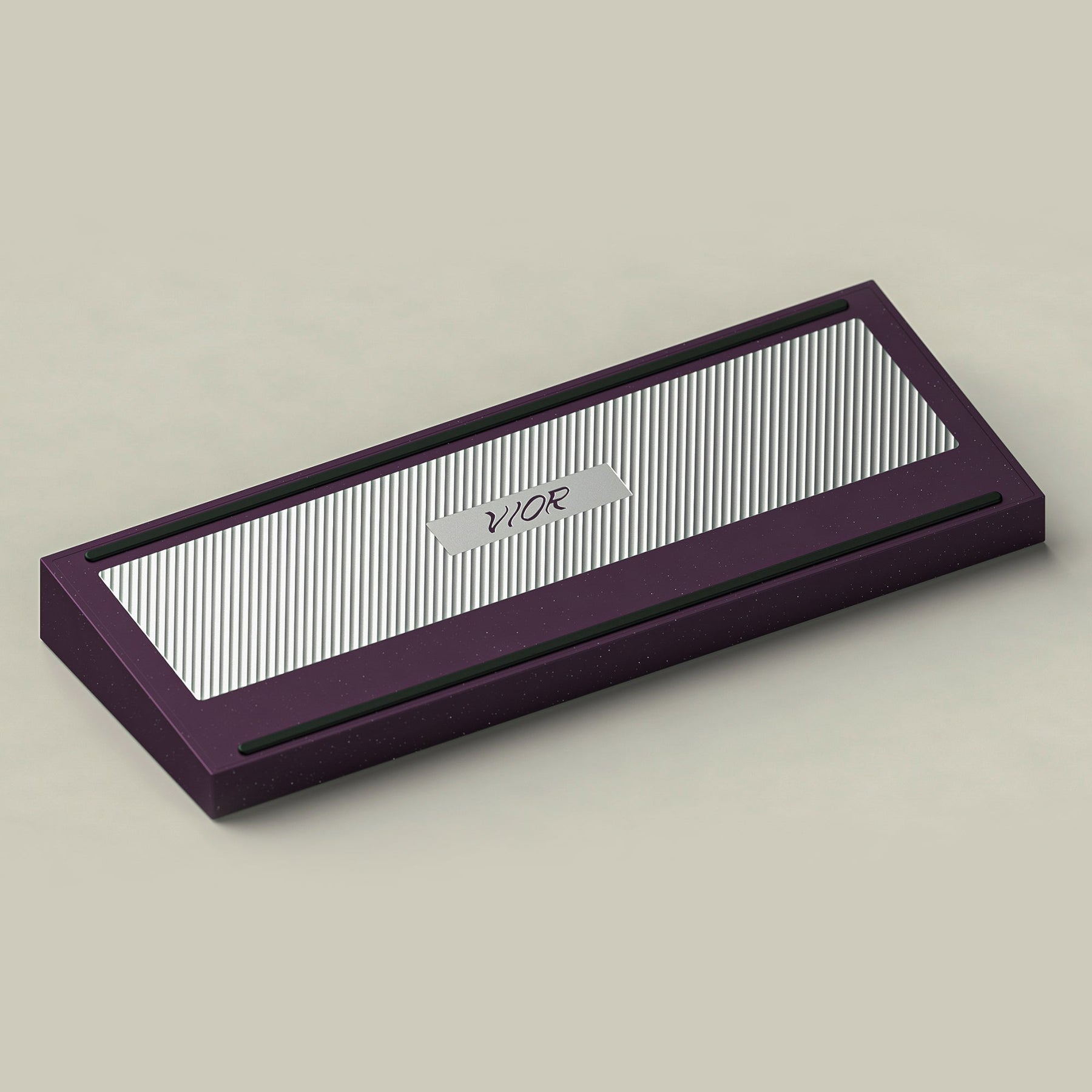

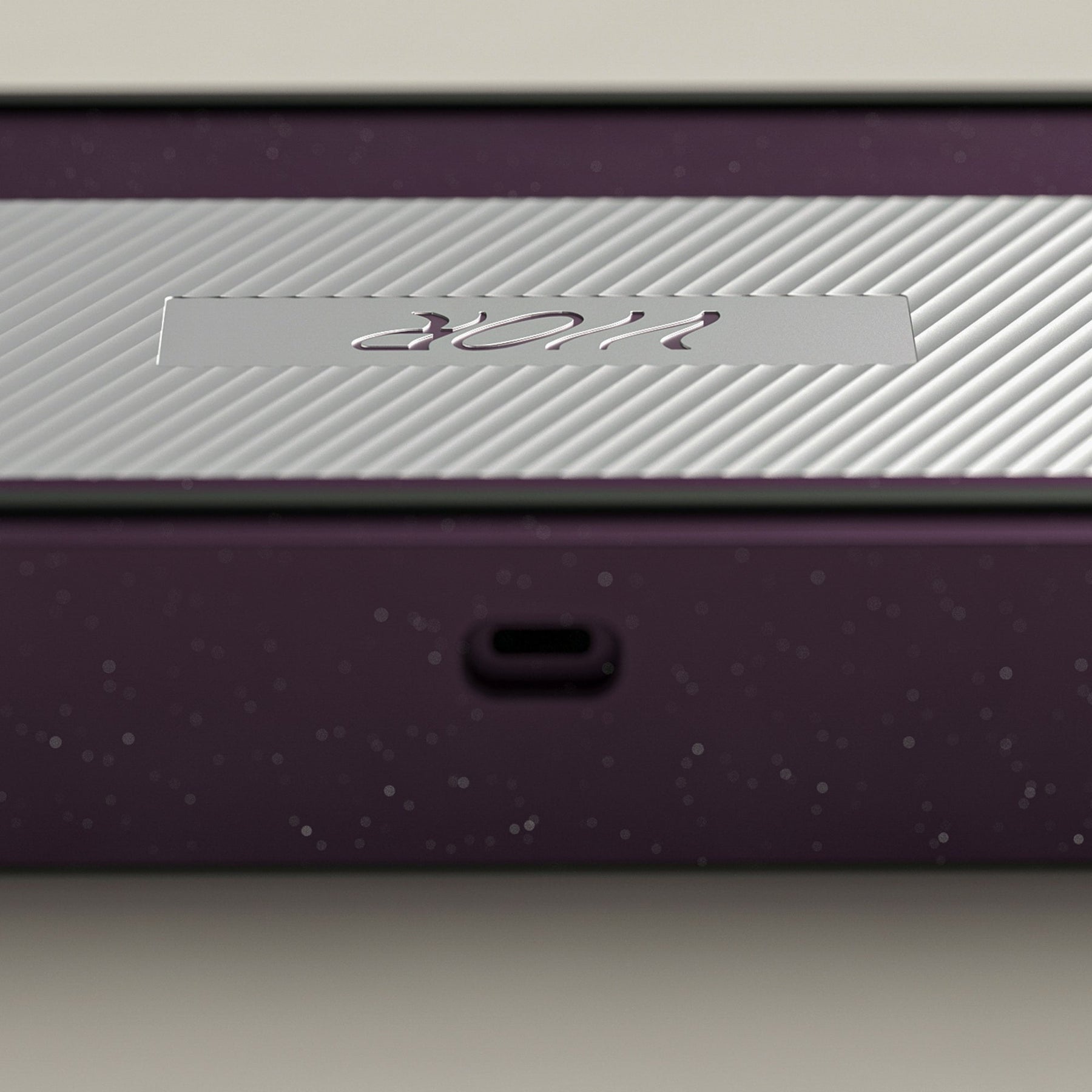

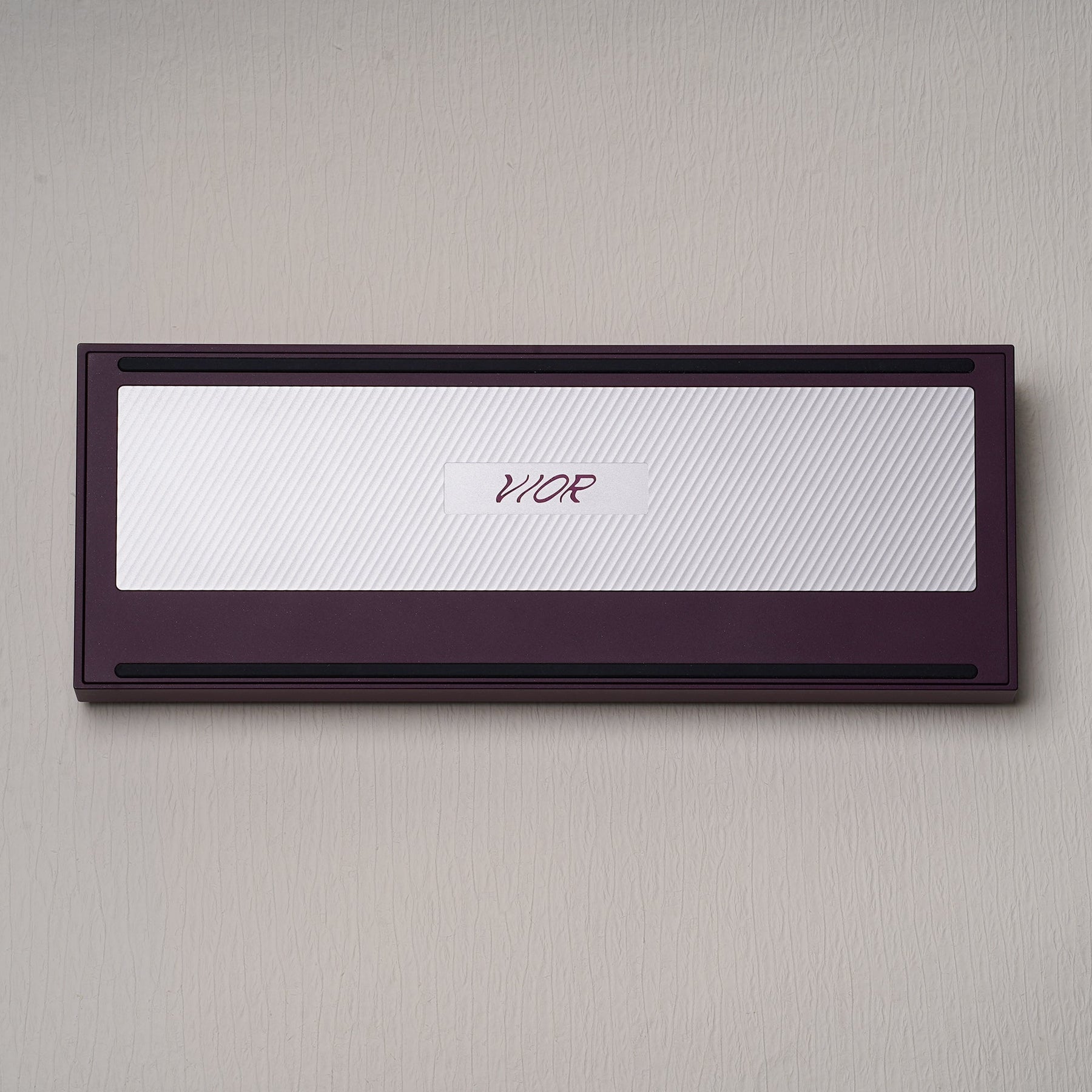

• Case: E-coating aluminum case with monochromatic glitter

• Plate: Carbon fiber plate

• PCB: 1.2 mm Flex cut Hot-swap PCB, supports per-key RGB, QMK firmware, VIA support, USB-C port, with daughterboard+JST cable

• Weight bar: Aluminum material

• Structure: Top mount, silicone socks, silicone bowl (3 types of structural support)

• Weight: ≈1.32 kg after assembled with switches and keycaps

• Dimension: 313.7 mm (length) x 115.7 mm (width) x 18.5 mm (front) x 32.5 mm (back)

• Feature: Screwless exterior design, the detachable silicon feet hiding all the screws at the bottom

• Typing angle: 7°

• Designed by KBDfans and Aiglatson Studio

• Made in China


Includes:

• Aluminum top and bottom case x1
• Aluminum weight bar x1
• Plate x1
• Hot-swap PCB x1
• USB-C daughterboard x1
• Silicone bowl x1 set
• Silicone socks x1 set
• Foam kit (Case foam x1, PCB foam x1, EVA switch pad x1)
• Cherry screw-in stabilizers x1 set
• Screws and rubber feet x1 set

• The keycaps are not included with this keyboard kit

Documentation:

• KBDFans Tofu 2.0 Building Tutorial
